The Rail Fastening System of K-Type

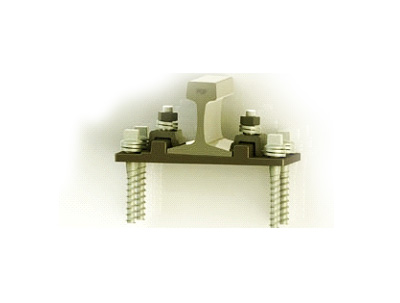

The rail fastening system of K-type is applied on the both wooden sleepers and pre-stressed monoblock sleepers. The rail is fastened onto the sleeper with “ribbed plate/rail clip/T-head bolt” components. This separation of the fastening has proved appropriate in both design and technical construction terms.
|
K-Superstructure |
Rail S 49 (S 54) |
|
Sole Plate Rph 1 (Rph 5) |
|
|
Zw 664a Rail Pad |
|
|
Screw Dowel Sdu 9 |
|
|
Hs 32 - 65 (Hs 26 - 65) |
|
|
Hex Nut |
|
|
Spring Washer Fe 6 |
|
|
Kpo 9 (or Kpo 6) Rail Clip |
|
|
Screw Spike Ss 8 |
