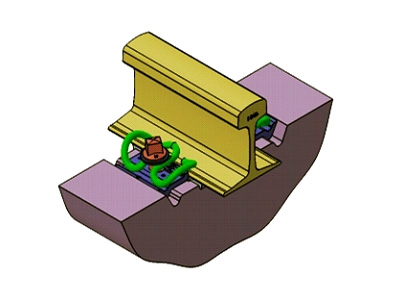

The Rail Fastening System with Tension Clamp Skl 14
In this system, the rail is mounted with W-shaped tension clamps, screws and angle guided plate Wfp 14K. The rail is based on the rail pad. The central loop of the spring clip allows the fastening system to have an additional elasticity what excludes the possibility of arms overload and their plastic deformation. It also prevents the rotation of the rail.
The Rail Fastening System with Tension Clamp Skl 14 |
Rail UIC 60 |
Zw 700/148/165 Rail Pad |
|
Angled Guide Plate Wfp 14K-12 |
|
Tension Clamp Skl 14 |
|
Dowel Sdu25 |
|
Sleeper Screw Ss35 |
|
Flat Washer ULS 7 |
